Devonian Arthrodires from

Stoyanow's Red Arthrodirian Sandstone
  Bothriolepis Devonian Arthrodire found in the Martin Formation north of Payson
Updated 12/17/06

 There are only a few known placoderm localities in northern Arizona which produce sizable and potentially identifyable fossils of these primitive Devonian fish. While Mount Elden may be the most well known locality, there are several others across the Mogollon Rim that produce fish. These others include the Highway 87/East fork of the Verde crossing, Horton Creek, and this one Stoyanow's Arthrodire Red beds north of Payson.

Introduction

The earliest known jawed armored fish in North America come from the Devonian. These primitive fish, known as Placoderms occupied fresh, brackish and marine environments during that time dominated by bottom and mid level ecological niches. Placoderms were covered by dense bony armored plates, articulated with joint lines to allow limited movement. This dense covering allowed many of the species to be preserved in the fossil record as collections of both articulated and disarticulated plates, known informally as "Fish Plates" amongst paleontologists. Recently, we rediscovered the long lost Arthrodirian Sandstone named by Stoyanow in 1936, at a location north of Payson and here we describe our initial exploration of that locality.

Background

In the late 1800's, Walcott discovered fish material, specifically placoderm Bothriolepis in the Devonian Temple Butte Limestone in the Grand Canyon. Fish plates were found at the East fork of the Verde River north of Payson by Stoyanow in the 30's, which we have found at the base of the Martin in that location sometimes pressed into reworked Cambrian sandstone from the Tapeats Sandstone. Placoderm material has also been collected at Mount Elden up in Flagstaff at an isolated outcrop in a side canyon. More recently, H. Johnson from NAU describes the material from both Mount Elden and from a broad area east of our new find, including an appendage of Bothriolepis. While her group failed to find the long lost Arthrodireian Sandstone beds described by Stoyanow, the fossil material which was in a limestone/dolomite matrix is very similar to what was found at our locality.

Geology

See the Devonian Martin formation , and its some of its fossils on this web site. It is important to note that it is only the lower facies of the Martin that is fish bearing. The middle and upper layers are dominated by a rich invertebrate fauna of corals, brachs, and stromatoporoids.

Discussion

One of our primary goals in exploring this area was to locate Frasnian aged trace fossils, and Holocene travertine fossils known to occur here. We also kept a look out for the fish material, since we were traversing the lowermost levels of the Martin, just adjacent to the Precambrian granites. It was not without many hours of searching the area on numerous expeditions that we discovered the reddish Devonian sandstone beds, with the richest fish fossil assemblage we had ever seen in the State of Arizona.

Outcrop Description: The reddish-tan sandstone which in places grades into a fine conglomerate is in a layer about 50 feet thick, extending horizontally along a wash for about 1000 feet. Rubble and broken slabs of the material wash downstream, often exposing large numbers of fossil armor plates within, some boulders containing scores of dermal plates ranging in size from 1 to upward of 20 cm. A monotonous gray micrite and dolomite lies on both sides of the red bed, and contains occasional bone material but little else.

Fossils include an assortment of indeterminate body armor plates, including ventral median plates, fin spines, large sections of articulated skulls, and countless lateral plates.

Associated fossils include large 2cm sized Paleophycus type trace fossils, Chondrites and an occasional brachiopod mix with poor preservation.

Here is a photo pictorial of the material we have recently collected at the Stoyanow locality, in what appears to be two separate speices - one textured and one smooth bodied. All are Placoderms, with the textured speices most likely Bothriolepis sp. As the above image indicates, we have found perhaps a half dozen complete or nearly complete placoderm specimens from this site alone. More specimens collected in future outings may help us identify more clearly the fossil types and speices of what we are finding in this unique world class site.

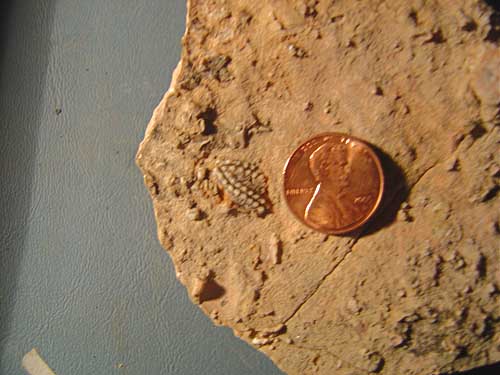

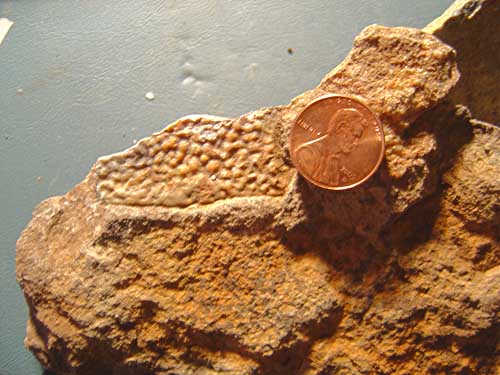

Textured dermal plates

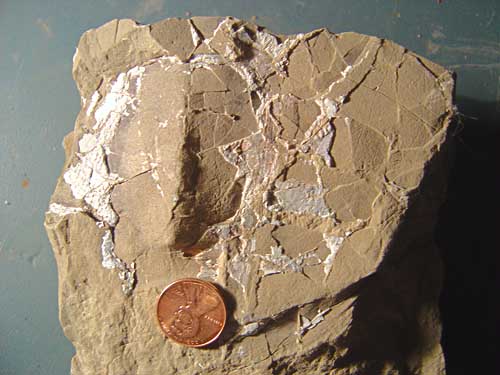

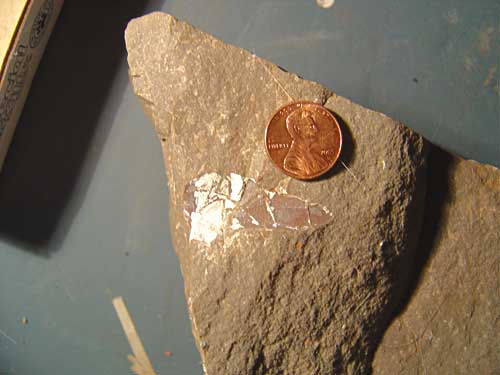

White bone material still present in many specimens

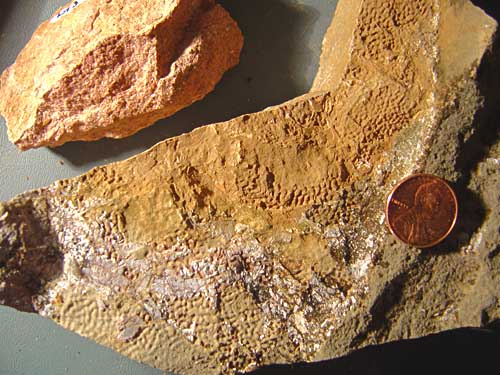

Textured dermal plates

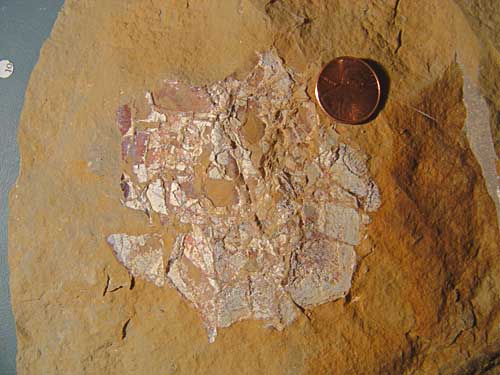

Smooth plates from second species

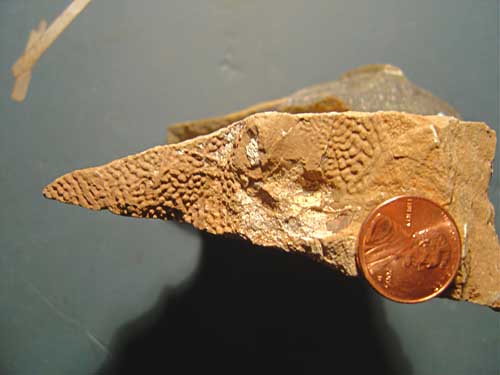

Textured dermal plates
Textured dermal plates

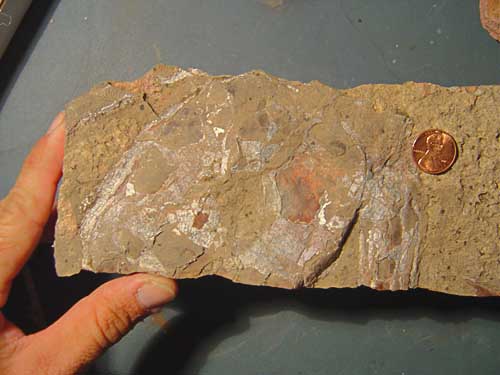

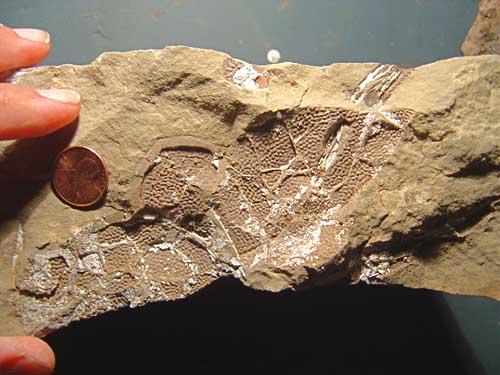

Many slabs were a jumble of separate dermal plates

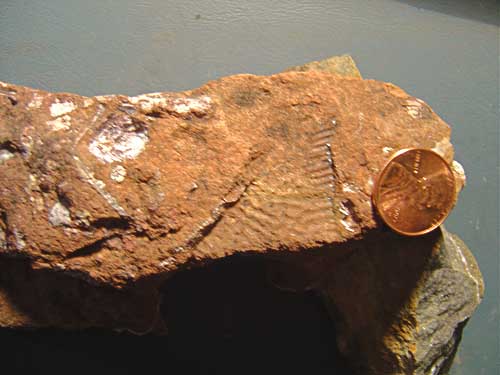

Textured dermal plates

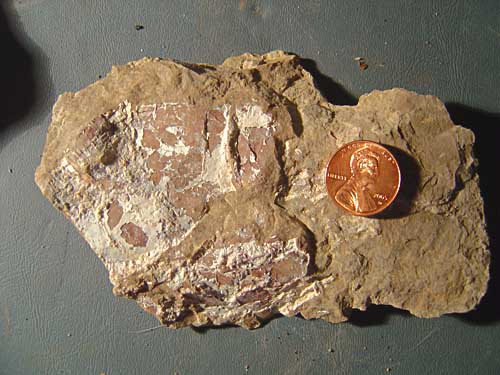

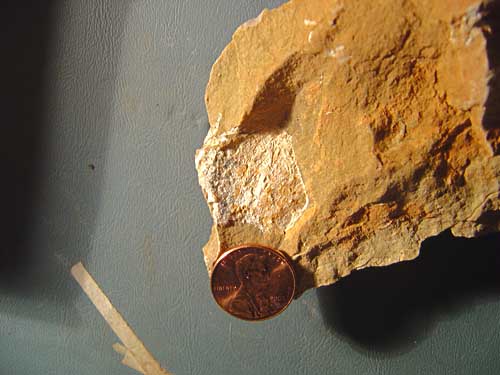

One of the thickest pieces of bone we found that day
Textured dermal plates
Enchinoderm test was with the fish material
Large unidentifed plate with bone material
Probable appendage of smooth bodied sp. (juviniles?)

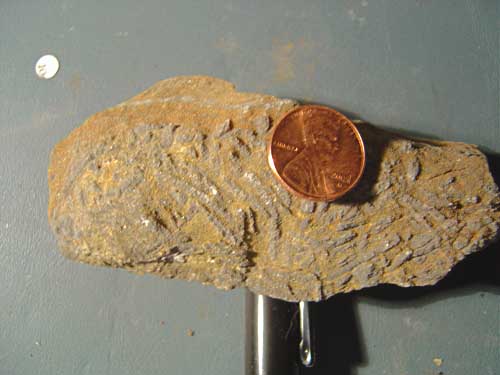

Downslope a rich trace fossil assemblage was found

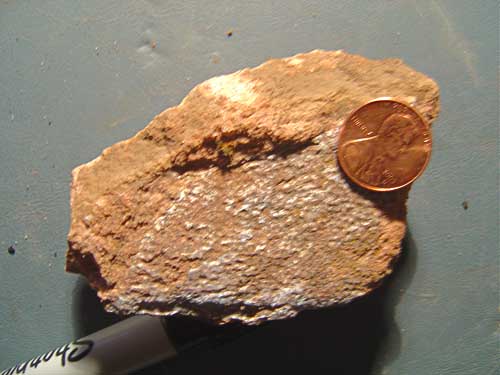

Textured dermal plates with bone
Large smooth plates with bone

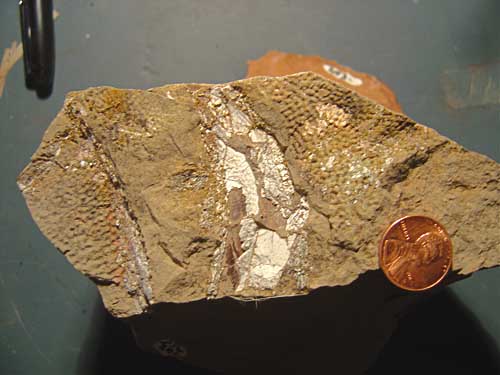

Textured dermal plates with bone
Textured dermal plates with bone
This piece of bone is very peculiar, and might be a large appendage
Textured dermal plate
Textured dermal plates with bone

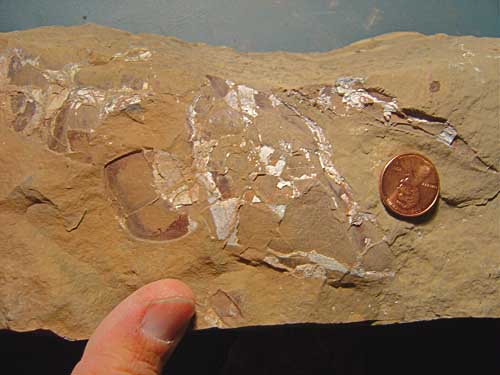

Our prize of the day - a nearly complete specimen!
Textured dermal plates with bone
Probable ventral median dermal plate
Another prize find, two views of a nearly complete placoderm
Second image with more shadow
Textured dermal plates with bone
Very clear deliniations in the dermal plate texture
This nearly complete fish has a perfect fin appendage! (above penny)
Textured dermal plates with bone
Most of the smooth bodied species, with central ridge
Textured dermal plates with bone
